Product Overview

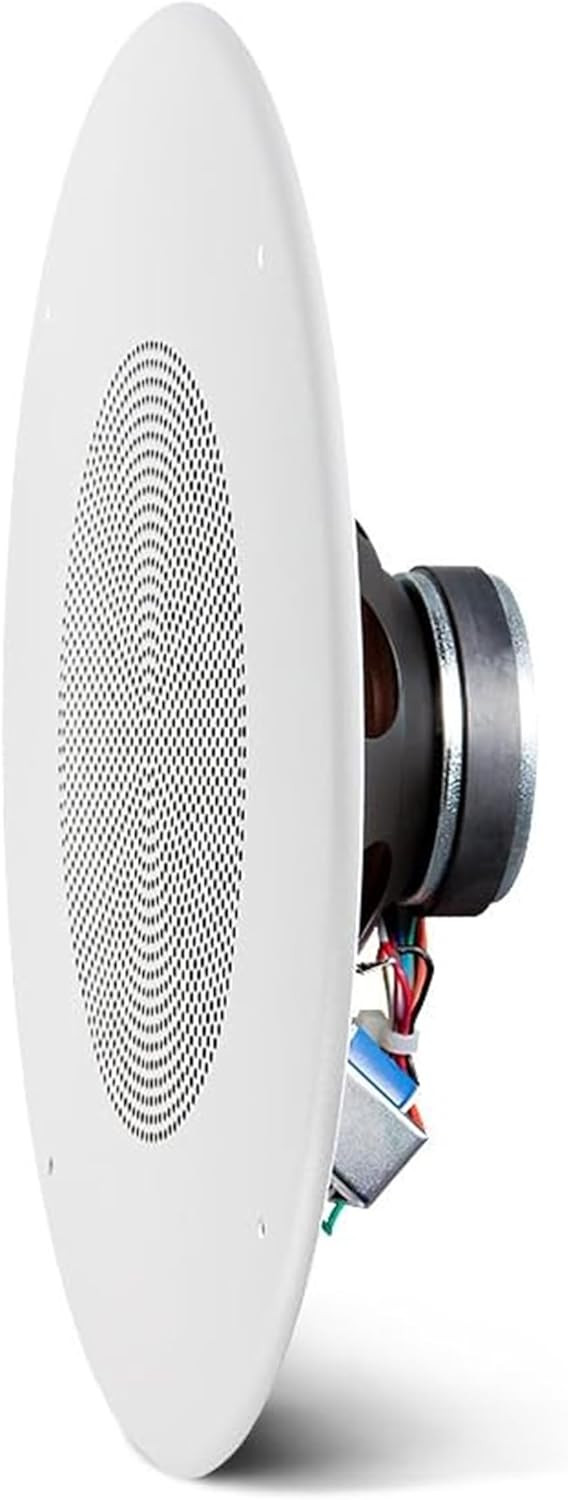

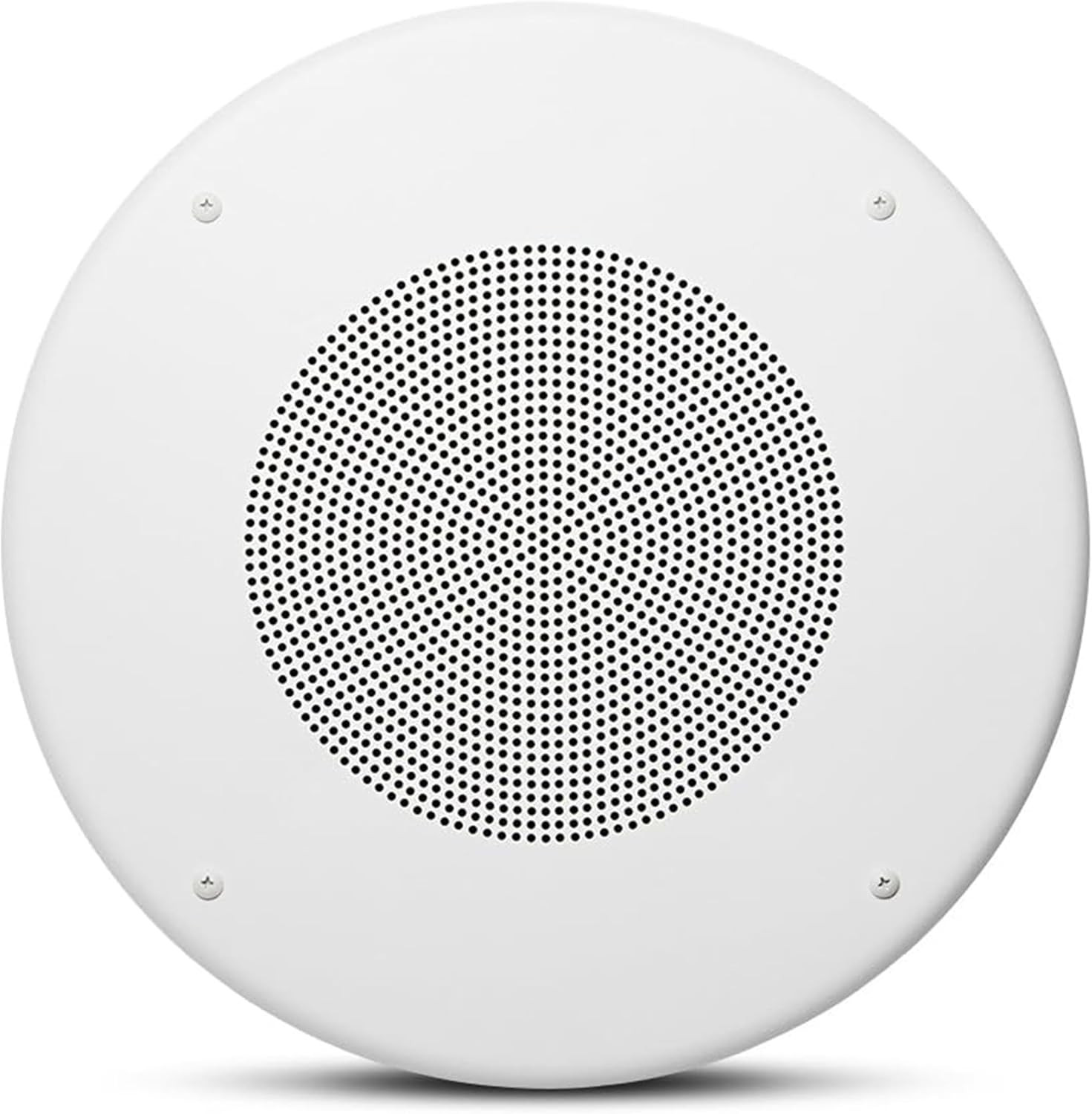

The JBL Commercial Series CSS8018 Ceiling Speaker delivers professional-grade sound performance ideal for paging and background music in commercial spaces such as retail stores, restaurants, offices, and schools.

Engineered with high 97 dB sensitivity, the CSS8018 ensures maximum sound output even at low power settings, while its 8-inch driver provides enhanced bass extension compared to standard ceiling speakers. The 10-Watt multi-tap transformer guarantees consistent and reliable audio performance across different installations.

Designed for easy installation, the CSS8018 features a pre-attached grille and transformer, along with a standard 11-inch bolt mounting diameter for compatibility with existing ceiling cutouts. The paintable steel grille blends seamlessly with any interior design, and the robust zinc-plated, cold-rolled steel construction ensures long-term durability.

For an optimized setup, pair with the optional JBL CSS-BB8 back cans, which offer improved low-frequency response and make pre-wiring and inspection simple. Whether for new installations or upgrades, the JBL CSS8018 offers the perfect balance of performance, reliability, and value for any commercial audio system.

Highlights

• High Sensitivity (97 dB): Produces excellent sound levels even at low power settings.

• 8-Inch Driver: Offers superior bass extension and clear audio quality.

• Multi-Tap 10W Transformer: Ensures compatibility with various sound systems.

• Durable Design: Features zinc-plated, cold-rolled steel grille (paintable for color matching).

• Easy Installation: Pre-attached grille and transformer with standard 11-inch mounting diameter.

• Optional CSS-BB8 Back Can: Enhances performance and simplifies pre-install wiring.

• Reliable Construction: 1-inch voice coil with Kapton coil-former for better heat dissipation.

Specifications

• Model Name: CSS8018

• Speaker Type: 8" Ceiling Speaker

• Sensitivity: 97 dB

• Transformer Power: 10W multi-tap

• Frequency Range (-10 dB): 50 Hz – 17 kHz

• Voice Coil: 1-inch diameter with Kapton coil-former

• Material: Zinc-plated, cold-rolled steel (paintable grille)

• Mounting Diameter: 11 inches

• Optional Accessory: CSS-BB8 back can (90 Hz – 17 kHz with back can)

• Application: Paging, background music, public address systems

• Sold As: Single speaker
